Distribution Functions¶

It is about determining the likelihood of an event.

Glossary
Addition rule
Multiplication rule

!uv pip install -q\
    latexify-py==0.4.4

from fractions import Fraction
from typing import Union

import latexify

Glossary¶

\(\cup\): Union (Or logic). \(P(A \cup B)\) means the probability of event A or event B occurring.
\(\cap\): Intersection (And logic). \(P(A \cap B)\) means the probability of event A and event B both

Example: Flipping a coin (Heads/Tails) or rolling a dice (1 to 6).

\(P(\text{Heads}) = \frac{1}{2}, \quad P(5) = \frac{1}{6}\)

Addition rule¶

Used to find the probability of A or B occurring, \(P(A \cup B)\).

Mutual exclusive event¶

Two events cannot happen at the same time (no overlap).

\(P(A \cup B) = P(A) + P(B)\)

@latexify.function
def p_union_mutual(
    p_a: Union[float, Fraction], p_b: Union[float, Fraction]
) -> Union[float, Fraction]:
    return p_a + p_b


p_union_mutual

\[ \displaystyle \mathrm{p\_union\_mutual}(\mathrm{p\_a}, \mathrm{p\_b}) = \mathrm{p\_a} + \mathrm{p\_b} \]

Example: Tossing a coin and getting Head or Tail.

\(P(H \cup T) = P(H) + P(T) = \frac{1}{2} + \frac{1}{2} = 1\)

Real-World Use: Calculating the probability of a defective product being caused by Machine A or Machine B, if a single product can only be processed by one machine.

p_head = Fraction(1, 2)
p_tail = Fraction(1, 2)

p_union_mutual_head_tail = p_union_mutual(p_head, p_tail)
p_union_mutual_head_tail

Fraction(1, 1)

Non Mutual exclusive event¶

Two events can happen at the same time (there is an overlap, \(P(A \cap B)\)).

\(P(A \cup B) = P(A) + P(B) - P(A \cap B)\)

@latexify.function
def p_union_non_mutual(
    p_a: Union[float, Fraction],
    p_b: Union[float, Fraction],
    p_a_intersection_b: Union[float, Fraction],
) -> Union[float, Fraction]:
    return p_a + p_b - p_a_intersection_b


p_union_non_mutual

\[ \displaystyle \mathrm{p\_union\_non\_mutual}(\mathrm{p\_a}, \mathrm{p\_b}, \mathrm{p\_a\_intersection\_b}) = \mathrm{p\_a} + \mathrm{p\_b} - \mathrm{p\_a\_intersection\_b} \]

Example: Drawing a card that is a King or a Heart. The King of Hearts is the overlap.

\(P(\text{King or Heart}) = P(\text{King}) + P(\text{Heart}) - P(\text{King of Heart})\)

\(P(\text{King or Heart}) = \frac{4}{52} + \frac{13}{52} - \frac{1}{52} = \frac{16}{52} = \frac{4}{13}\)

Real-World Use: Calculating the probability a customer buys a coffee or a pastry. You must subtract the probability that they buy both (the overlap) so you don't count them twice.

p_king = Fraction(4, 52)
p_heart = Fraction(13, 52)
p_king_heart = Fraction(1, 52)

p_union_non_mutual_king_or_heart = p_union(p_king, p_heart, p_king_heart)
p_union_non_mutual_king_or_heart

Fraction(4, 13)

Multiplication rule¶

Used to find the probability of A and B occurring, \(P(A \cap B)\).

Independent events¶

The occurrence of event A does not affect the probability of event B.

\(P(A \cap B) = P(A) \cdot P(B)\)

Example: Getting a Head on the first flip and a Tail on the second flip.

\(P(H \cap T) = P(H) \cdot P(T) = \frac{1}{2} \cdot \frac{1}{2} = \frac{1}{4}\)

Real-World Use: The probability that a customer in London clicks an ad and a different customer in New York clicks the same ad.

Dependent events¶

The occurrence of event A affects the probability of event B. We use Conditional Probability: \(P(B \mid A)\) is the probability of B given A has already occurred.

\(P(A \cap B) = P(A) \cdot P(B \mid A)\)

Example: Taking a King card first, then a Queen card (without replacing the first card).
\(P(K \cap Q) = P(K) \cdot P(Q \mid K) = \frac{4}{52} \cdot \frac{4}{51}\)
Real-World Use: The probability of rain today given that the sky was cloudy this morning. Crucial for algorithms like Naive Bayes.

Probability distribution functions¶

Describe how the probabilities are distributed over the values of a random variable.

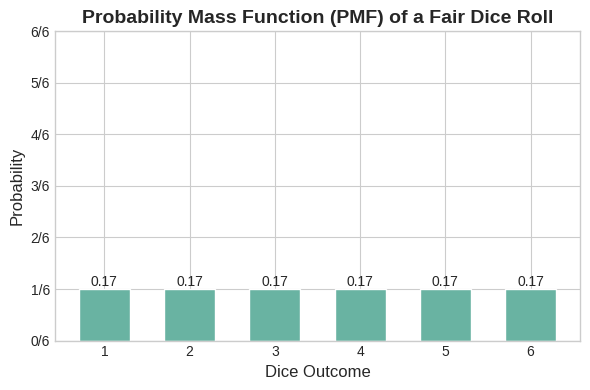

Probability Mass Function PMF¶

Applies To: Discrete Random Variables (Countable outcomes like 0, 1, 2)

Purpose: Gives the probability that a discrete variable is exactly equal to some value \(k\).

x = np.arange(1, 7)
p = np.full(6, 1 / 6)  # Equal probability for each outcome

plt.style.use("seaborn-v0_8-whitegrid")
plt.figure(figsize=(6, 4))

plt.bar(x, p, color="#69b3a2", edgecolor="white", width=0.6)

for xi, pi in zip(x, p):
    plt.text(xi, pi + 0.01, f"{pi:.2f}", ha="center", fontsize=10)

plt.title(
    "Probability Mass Function (PMF) of a Fair Dice Roll",
    fontsize=14,
    weight="bold",
)
plt.xlabel("Dice Outcome", fontsize=12)
plt.ylabel("Probability", fontsize=12)

plt.yticks(np.arange(0, 1.1, 1 / 6), [f"{i}/6" for i in range(7)])

plt.tight_layout()
plt.show()

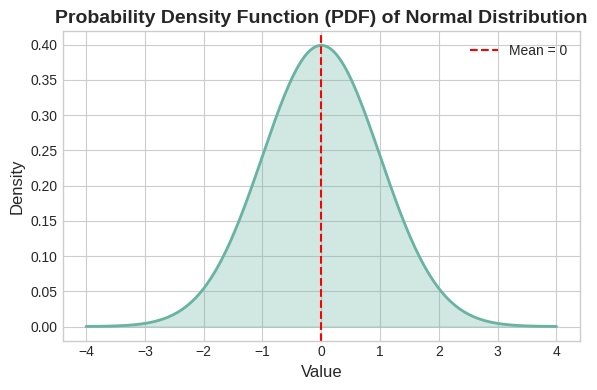

Probability Density Function PDF¶

Applies To: Continuous Random Variables (Measurable outcomes like height, temperature)

Purpose: Gives the relative likelihood of a continuous variable falling near a value. Area under the curve gives probability over an interval.

x = np.linspace(-4, 4, 200)
pdf = norm.pdf(x, loc=0, scale=1)  # mean=0, std=1

plt.style.use("seaborn-v0_8-whitegrid")
plt.figure(figsize=(6, 4))

plt.plot(x, pdf, color="#69b3a2", lw=2)
plt.fill_between(x, pdf, color="#69b3a2", alpha=0.3)

plt.axvline(0, color="red", linestyle="--", lw=1.5, label="Mean = 0")

plt.title(
    "Probability Density Function (PDF) of Normal Distribution",
    fontsize=14,
    weight="bold",
)
plt.xlabel("Value", fontsize=12)
plt.ylabel("Density", fontsize=12)
plt.legend()

plt.tight_layout()
plt.show()

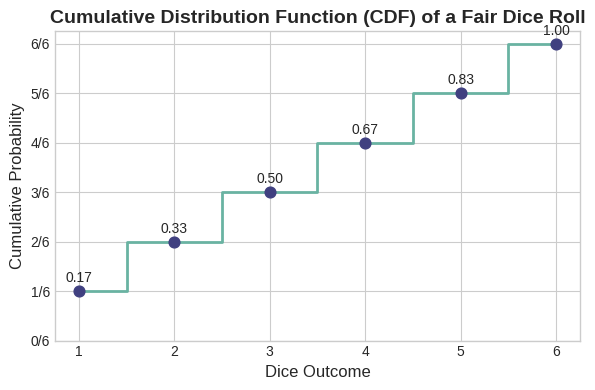

Cumulative Density Function CDF¶

Applies To: Both Discrete and Continuous

Purpose: Gives the probability that a variable is less than or equal to some value \(x\). It sums the probabilities/densities up to \(x\).

x = np.arange(1, 7)
p = np.full(6, 1 / 6)

cdf = np.cumsum(p)

plt.style.use("seaborn-v0_8-whitegrid")
plt.figure(figsize=(6, 4))

plt.step(x, cdf, where="mid", color="#69b3a2", linewidth=2)
plt.scatter(x, cdf, color="#404080", s=60, zorder=3)

for xi, fi in zip(x, cdf):
    plt.text(xi, fi + 0.03, f"{fi:.2f}", ha="center", fontsize=10)

plt.title(
    "Cumulative Distribution Function (CDF) of a Fair Dice Roll",
    fontsize=14,
    weight="bold",
)
plt.xlabel("Dice Outcome", fontsize=12)
plt.ylabel("Cumulative Probability", fontsize=12)

plt.yticks(np.arange(0, 1.1, 1 / 6), [f"{i}/6" for i in range(7)])

plt.tight_layout()
plt.show()
